How to Measure and Order a Radiused Wall Track: RAI

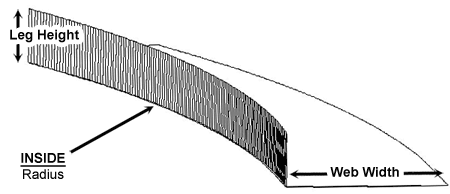

Our Radiused Angle with an Inside Leg is great for creating a dome light cove

















Download our printable (pdf) Curved Product Guide, which will show you the different ways we can help you create curved walls of any kind..

RADIUS:

The Fast Arch Radiused Angle with Inside Leg can be built to any radius you need.  Literally.  The RAI is based on the radius to the inside leg.

WEB WIDTH:

This will affect your lighting options.  How big will your tray need to be?  We normally build the RAI to a width between 2-1/2" all the way to 12".

LEG HEIGHT:

The measurement of the height of the side flange.  For the RAI, we normally make the leg 1-1/4".

LENGTH:

How long will your curve be?  That is the length.  Our RAI products are available in segment lengths of up to 144".  If you're doing a whole dome, we'll send it in several segments to make it cheaper to ship and easier to install.

GAUGE:

We'll use the gauge you desire, from 25 to 14 gauge sheet metal.
