How to Measure and Order a Radiused Wall Track: RAO

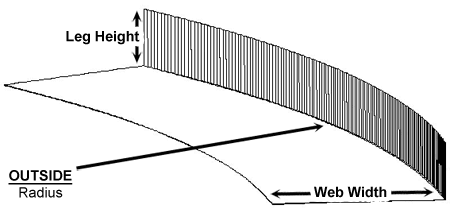

Need clean edges on outside curves? The RAO is the perfect solution.



















Download our printable (pdf) Curved Product Guide, which will show you the different ways we can help you create curved walls of any kind..

RADIUS:

The Fast Arch RAI can be built to any radius you need.  Literally.  The RAI is based on the radius to the OUTSIDE leg - this is different than many of our other Radius Track Products.

WEB WIDTH:

The RAO uses a standard thickness of 2-1/2".

LEG HEIGHT:

The measurement of the height of the side flange.  the RAO is generally built to 1-1/4".

LENGTH:

How long will your curved wall be?  That is the length.  Our RAO products are available in lengths of up to 144".  If you need a longer length, no worries, we can provide as many segments as you need to create the wall your customer is expecting.

GAUGE:

We'll use the gauge you desire, from 25 to 14 gauge sheet metal.
